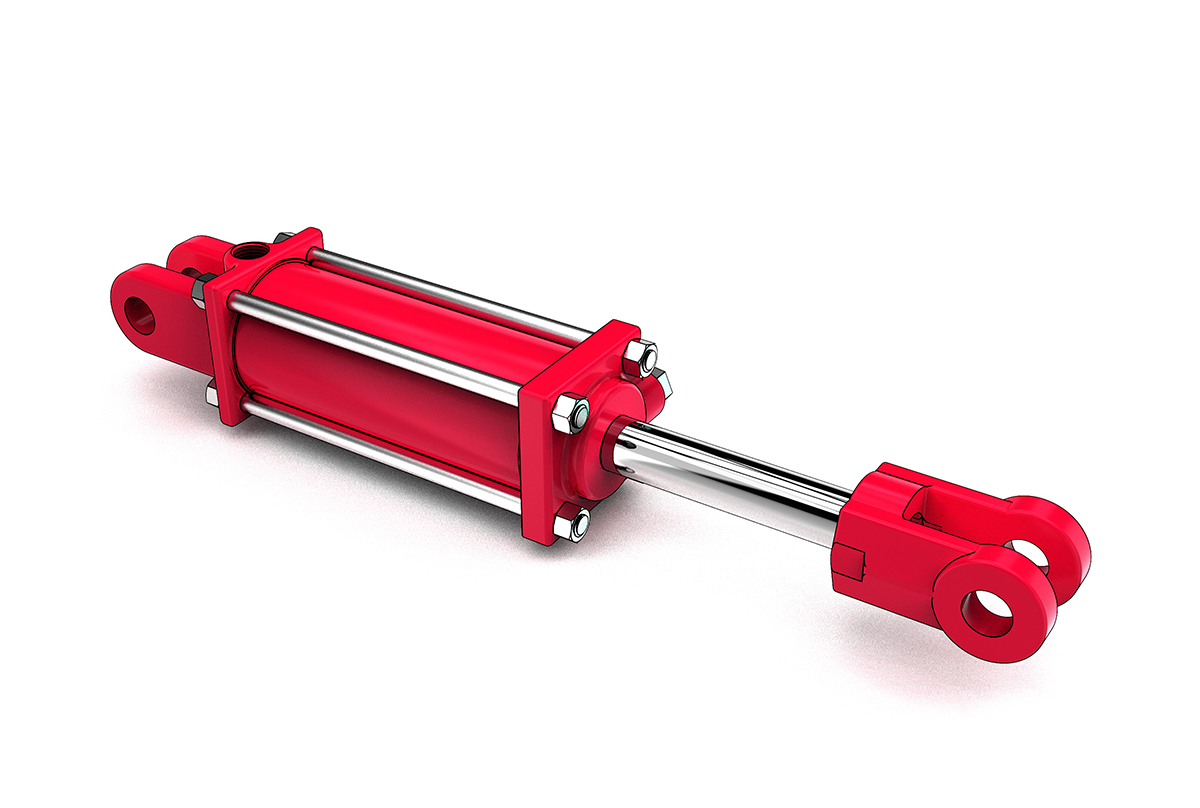

How to Prevent a Bent Piston Rod in Hydraulic Cylinders

A bent piston rod is one of the most destructive hydraulic cylinder failures. It destroys seals, triggers severe oil leakage, creates erratic movement, and scoring in the cylinder barrel. Bending failures stem directly from side loading, compressive buckling, undersized piston rod geometry, or severe operational overloads.

Fixing a bent piston rod requires identifying the mechanical root cause first—installing a replacement without addressing system geometry almost certainly leads to a repeat failure.

1. Excessive Side Loading

Hydraulic cylinders are pure axial force actuators. Any force applied perpendicular to the piston rod generates severe bending moments.

• Primary Causes: Rigid mounting misalignment, mechanical guide wear, off-center loading, and lateral forces during machine cycles.
• Prevention: Re-align mounting points during commissioning. Integrate external mechanical guides or spherical bearings to absorb side loads before they reach the piston rod.

2. Buckling Under Compression

Long-stroke cylinders operating under push loads face extreme Euler buckling risks.

• Risk Factors: Extended stroke lengths, thin rod diameters, high operating pressures, and pin-to-pin mounting conditions.

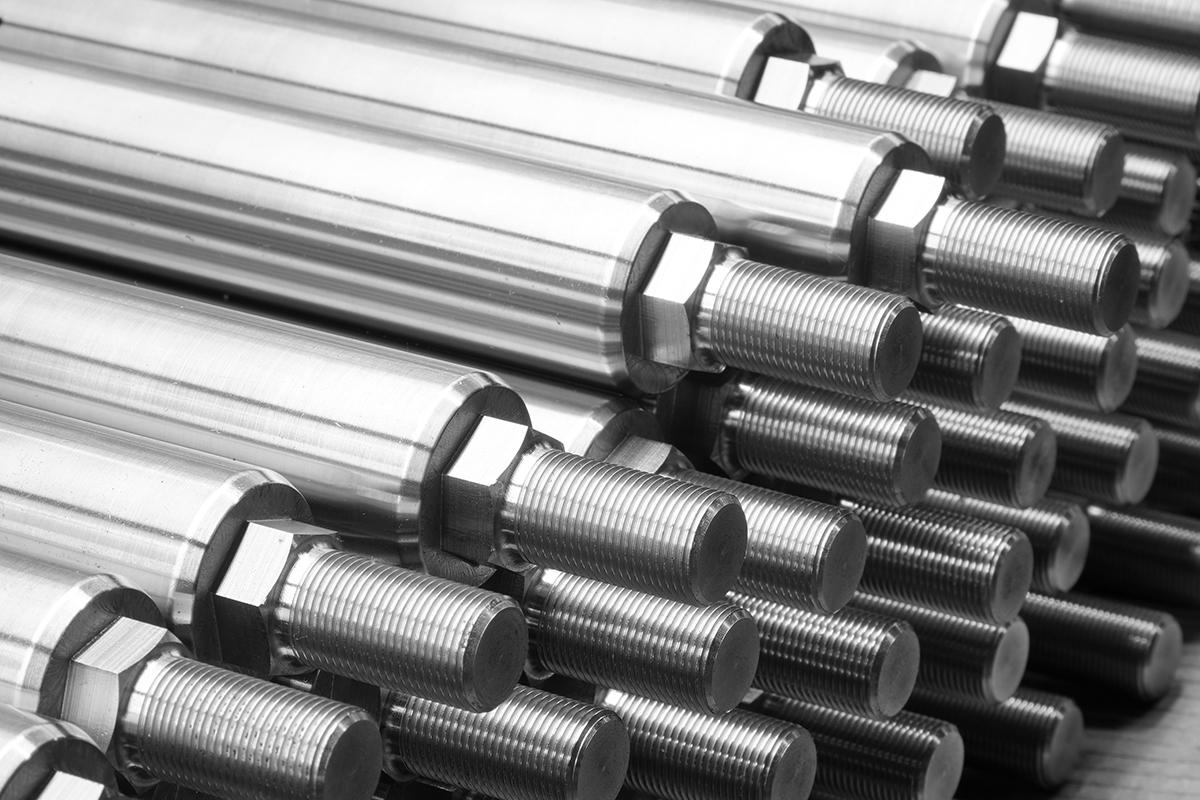

• Prevention: Calculate compressive buckling limits early in the design phase. Increasing the piston rod diameter or specifying high-yield materials—such as 38MnVS6 or 42CrMo4—provides the structural safety margin required for heavy push cycles.

3. Shock Loads and Impact

Sudden mechanical impacts exceed design pressures instantly. Heavy machinery (excavators, cranes, mining rigs) frequently encounters dynamic spikes that permanently yield the piston rod before fatigue cracks even show.

• Prevention: Eliminate using the cylinder as a mechanical end-stop. For high-impact applications, combine high-strength alloy steels with induction hardening to absorb mechanical shocks.

4. Incorrect Material Specification

Operating loads exceeding the material's yield strength cause permanent plastic deformation.

• Prevention: Base material selection on yield strength, fatigue limits, and total stroke length—tensile strength is merely a baseline property.

5. Assembly Misalignment

Even a high-precision piston rod bends rapidly if forced into an off-center assembly.

• Common Results: Asymmetrical seal wear, deep piston rod scoring, localized bending, and premature guide bush failure.
• Prevention: Measure mounting concentricity, piston rod straightness, and hinge geometry prior to initial start-up.

Prevention Checklist

• Run Euler buckling load calculations during system design.
• Select material grades matching peak dynamic stress (e.g., 38MnVS6 / 42CrMo4).
• Enforce strict rod straightness tolerances during manufacturing.
• Verify mounting alignment and hinge pin clearance at installation.
• Isolate the cylinder from lateral force vectors using spherical eyes.
• Inspect seals, guide bushes, and pin mounts immediately after any rod overload event.

Technical FAQ

Q1: Can a bent piston rod be cold-straightened and re-used?
Cold-straightening creates high internal residual stresses and micro-cracks in the hard chrome layer, leading to rapid seal destruction. Replacing the piston rod is the standard practice for safety-critical equipment.

Q2: Does increasing piston rod diameter eliminate bending risk?
A larger diameter directly boosts the piston rod's moment of inertia and buckling limit. However, optimal sizing depends on stroke length, mounting style, and peak working pressure—proper engineering calculations determine the exact diameter required.

Q3: Which steel grade works best for heavy-duty piston rods?
Micro-alloyed steel 38MnVS6 and quenched-and-tempered 42CrMo4 offer superior yield strength and fatigue limits compared to standard C45E carbon steel. Final selection depends on operating pressure and environmental exposure.

Q4: Does induction hardening prevent piston rod bending?
Induction hardening creates a tough outer shell (HRC 55-57) to resist surface dents and mechanical scratches. Structural bending resistance depends on the steel’s yield strength, elastic modulus, and core diameter—hardening protects the surface, while geometry and core strength prevent bending.

Conclusion

Preventing piston rod failure requires evaluating the entire actuator system. Matching working loads with the correct rod diameter, high-yield material grade, precise mounting alignment, and proper surface protection ensures long service life and eliminates repeated maintenance downtime.
