Expert Technical Guide: Corrosion Resistance in Hydraulic Piston Rods to Minimize Construction Machinery TCO

The hydraulic cylinder is the indispensable power source for heavy-duty equipment—excavators, cranes, mining trucks, and loaders. Yet, in the harsh outdoor environments these machines operate in, corrosion is not just a risk; it is a catalyst for systemic failure and a major driver of elevated Total Cost of Ownership (TCO).

Golden Asia advises that corrosion is a performance bottleneck that leads to seal abrasion, oil leakage, reduced efficiency, and significant unscheduled downtime.

1. Corrosion: The Systemic Failure Catalyst

The essence of hard chrome piston rod failure due to corrosion is the breakdown of the hard chrome layer, leading to pitting. This initiates an irreversible cascade of failures:

Critical Causality Analysis: While many failures are diagnosed as "oil leaks," the true root cause is often the microscopic corrosion pit. These pits act as abrasive particles that damage the hard chrome piston rod seal during reciprocation. This localized failure then escalates to pressure loss, oil leakage, and the introduction of external contaminants into the entire hydraulic circuit, risking damage to expensive valves and pumps.

Extreme Environmental Threats

The corrosion risk in construction is unavoidable due to:

• Abrasive Contaminants: Mud, concrete slurry, and dust trap moisture and accelerate surface wear and pitting.
• Aggressive Chemistry: Salt spray from coastal or road maintenance zones, and chemical ions from fertilizers, rapidly attack the standard chrome plating.

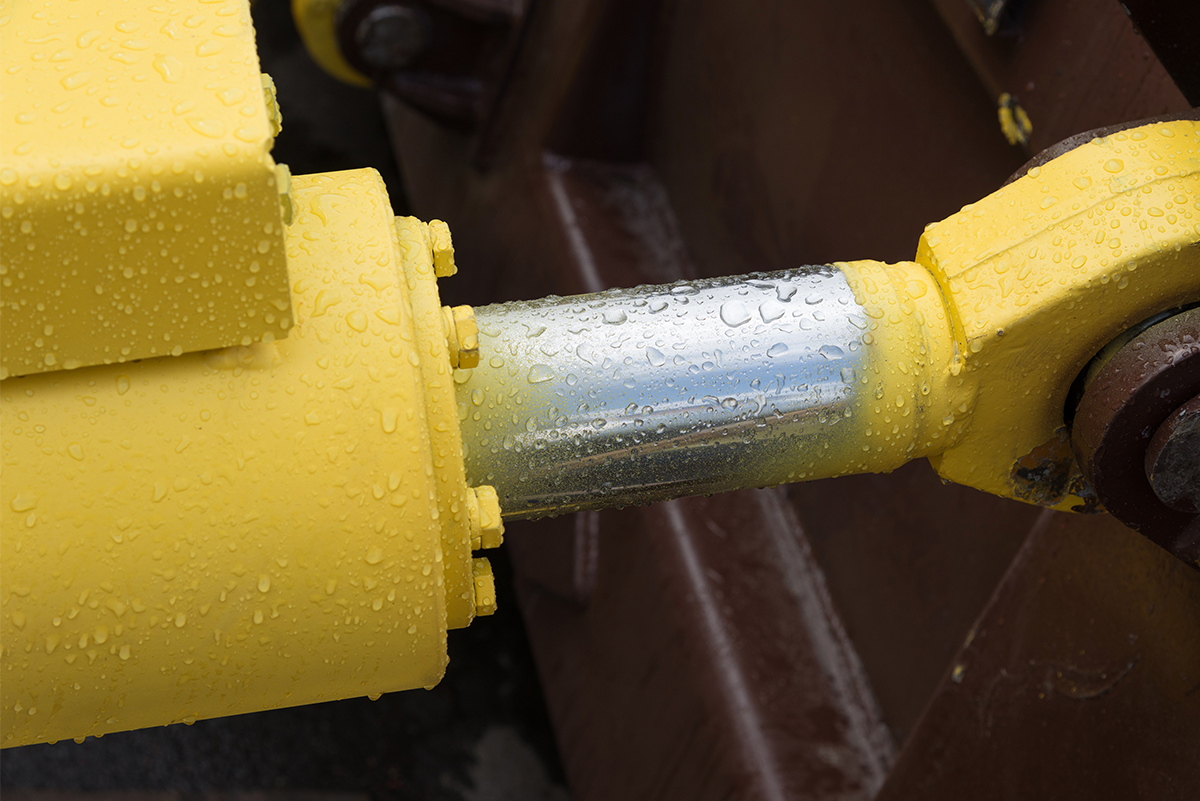

• Idle Period Risk: Continuous humidity creates micro-corrosion environments even when the machine is inactive.

2. Business Imperative: TCO Reduction through Corrosion Management

Focusing solely on the initial purchasing price of a hard chrome plated n rod is a TCO trap. A strategic investment in corrosion resistance yields measurable long-term savings.

• TCO Analysis: Low-quality hard chrome plated rods may require replacement every 12–18 months in harsh climates. Golden Asia’s enhanced piston rods extend this cycle to three years or more, significantly reducing labor costs, oil loss, and eliminating system contamination risks.
• Corrosion is a visible quality issue. Investing in NSS 500–1000 hour protection is the most effective way for OEMs to mitigate warranty claims and safeguard brand reputation.

3. Golden Asia’s Integrated Corrosion and Structural Solutions

Corrosion resistance relies on a complete system encompassing material preparation, surface precision, and specialized coating technology. Our hard chrome plated rods are engineered specifically for high-duty construction and outdoor machinery.

(1) Hard Chrome Plating – NSS 96–120 Hours (Standard)

Our standard chrome plated rods meet the corrosion resistance required for most construction machinery.

• Chrome thickness: 20 μm
• Surface roughness: Ra ≤ 0.2 μm (mirror-grade finish reduces seal wear)
• Neutral Salt Spray Test (NSS): 96–120 hr

This level protects against daily humidity, rain exposure, mud, and general outdoor use.

(2) Enhanced Anti-Corrosion Options – NSS 500–1000 Hours

For machines near coastal zones, chemical plants, ports, or high-moisture environments:

• Multi-layer chrome system
• Custom plating formulations

With NSS 500–1000 hours corrosion resistance, the hard chrome piston rod maintains surface integrity and service life even in harsh climates such as coastal, mining, or high-humidity environments.

(3) Precision Surface Quality That Protects Seals

Corrosion resistance is not only about plating thickness; it is also dependent on surface preparation.

Golden Asia guarantees:

• Ra ≤ 0.2 μm mirror finish
• Roundness: following ISO tolerance classes
• Straightness: 0.25/1000 mm

Why this matters:

A smoother, straighter hard chrome piston rod keeps contamination away from the seal and prevents micro-abrasion.

(4) Material Options Tailored for Strength (Not Corrosion)

While corrosion protection relies on plating/coating—not material grade—we offer high-strength steels for structural durability:

• CK45 / C45
• 20MnV6
• 42CrMo4 / SAE 4140 (for high impact and fatigue resistance)

Corrosion packages can be applied to any of these grades depending on the application.

4. Expert FAQ: Corrosion Resistance and Durability

Q1. How does corrosion impact cylinder efficiency and TCO?
Corrosion pits function as abrasives, cutting the seal lip and causing premature wear, oil leakage, and reduced cylinder pressure. This directly increases maintenance frequency and elevates your machine's Total Cost of Ownership (TCO).

Q2. Does material grade (e.g., 42CrMo4, 20MnV6) affect corrosion resistance?
No. Corrosion performance depends solely on the surface treatment and plating thickness. Material grade determines structural properties: fatigue resistance and bending load capacity.

Q3. When should NSS 500–1000 hour protection be selected?
This advanced level is required for extreme corrosive environments, including coastal sites, port equipment, road salt machinery, and areas exposed to high chemical concentrations.

Q4. Why is Ra ≤ 0.2 μm surface roughness critical for seal life?
This mirror finish prevents contaminants from embedding onto the surface and dramatically reduces friction. A smoother hard chrome plated rod minimizes seal abrasion, directly extending both seal and cylinder lifespan by 20% to 40%.

Q5. What causes corrosion on hydraulic piston rods in construction machinery?

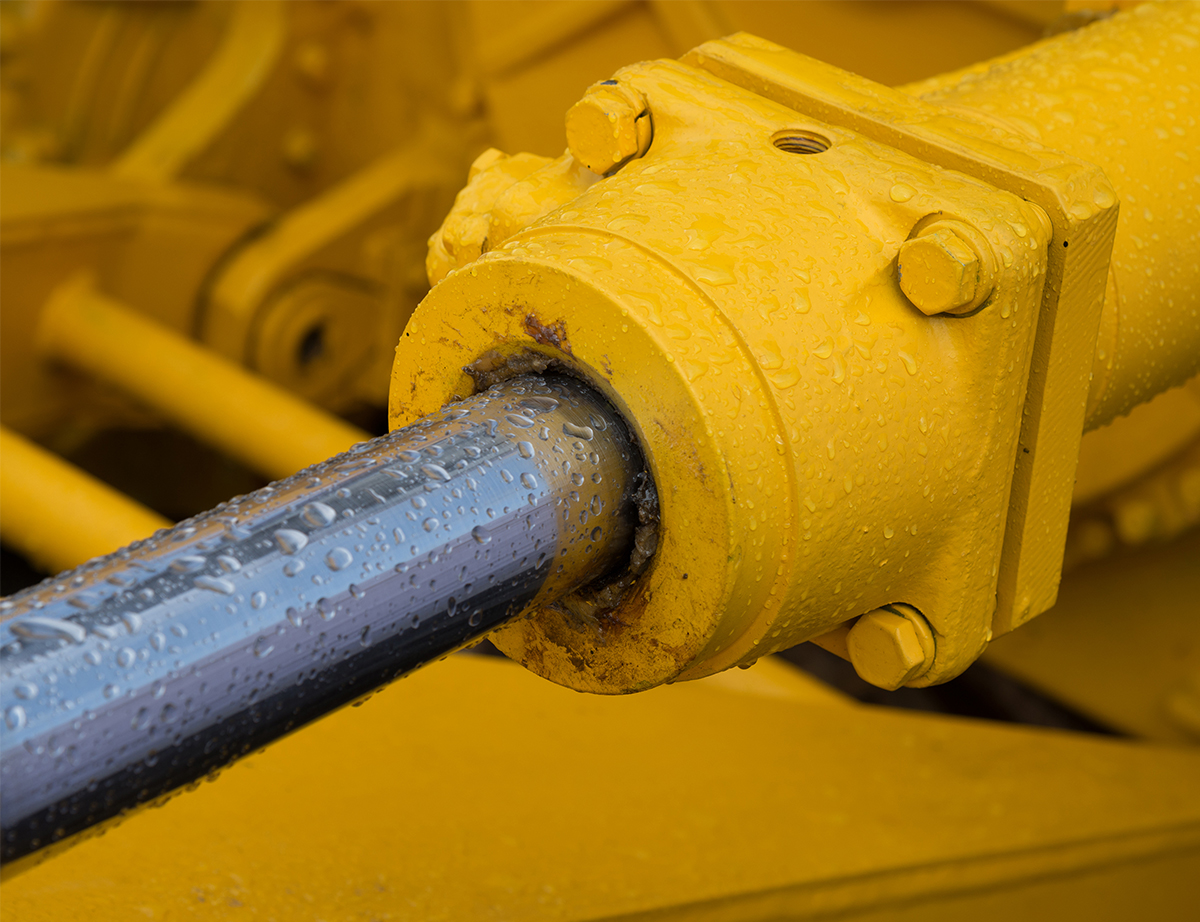

Corrosion typically occurs due to continuous exposure to rain, humidity, salt spray, mud, concrete slurry, and chemicals. These contaminants trap moisture on the hard chrome plated rod surface and initiate pitting, which then damages seals and leads to leakage.

Q6. What maintenance practices can extend piston rod service life?
Proactive maintenance is key. Regularly clean piston rods after exposure to mud or chemicals. Avoid long-term storage with rods fully extended, and use protective covers when machines are idle.

Q7. When should C45 Induction Hardened Piston Rods be selected?
C45 induction hardened piston rods are the standard upgrade for mainstream construction equipment. They offer an ideal balance of cost and durability when protection against surface impact and moderate side loading is required.

Q8. How much corrosion resistance do Golden Asia’s hard chrome piston rods provide?
We offer multiple levels of anti-corrosion protection: Standard chrome plating (NSS 96–120 hours) and Enhanced systems (NSS 500–1000 hours) for extreme environments. Both systems can be applied to high-strength base materials.

Q9. How do I know which level of corrosion protection my machine needs?
Golden Asia can provide recommendations based on a short environmental assessment covering your working environment, duty cycle, and exposure to chemicals or salt.

5. Strategic Investment in Uptime

Corrosion resistance is a strategic advantage that guarantees long-term operational integrity. Golden Asia provides technically engineered solutions that offer:

• Longer Seal Life: Guaranteed by precise Ra ≤ 0.2 μm finishing.
• Maximum Uptime: Achieved through robust NSS 1000-hour protection options.
• Reduced TCO: By minimizing unplanned service calls and material replacement frequency.

Golden Asia is not just a supplier; we are your partner in managing risk and ensuring the maximum operational life of your construction fleet.

Contact Golden Asia technical consultants today to assess your environmental risk and secure the optimal corrosion-resistant piston rod solution for your global OEM standards.
